In Magnetic Builder Advanced Page, user can view the details of each winding. Besides the number of turns using, user can view which wire is using. By clicking the name of the wire, user can see the component finder page of that winding.
At the component finder page, user can change the wire diameter range, wire type and manufacturer and then search the wires. Besides that, user can change to copper foil by pressing button.

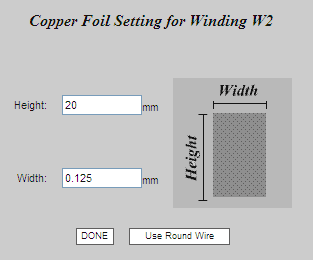

At the copper foil setting page, user can set the width and height of the copper foil used by this winding. You can preview the transformer when finished.
|
