Getting Start of PowerEsim Help Manual

PowerEsim is a free web-based software providing power supply (SMPS) design, transformer design, magnetic design, loss analysis, thermal analysis, waveform analysis, MTBF analysis, BOM building, DVT analysis and optimization of power supply (SMPS).
Click to try PowerEsim (www.powerEsim.com)

4         Getting Start

4.1            Select topology at front page

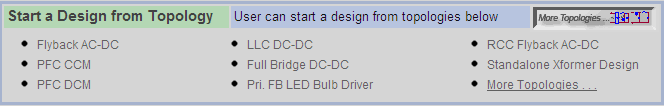

 Click on any link of topology to select a topology



4.2            Select topology at other sub-page



You can click “Select topology” to go back to front page to select another topology



4.3            Add more outputs

Click the link “Add O/P” to add more output.



4.4            Changing input voltage and current



Enter the input voltage range VinMin - VinMax, output voltage Vo and rated current Io at each output.




4.5            First thing to do - Initialize Design



Once input and output are defined, press the button “Initialize Design.” A preliminary design will be recommended by PowerEsim.



4.6            Add Stack Winding



You can press “Add Stack” to add ac stack winding before and after the design initialized.



4.7            Select a part from schematic page

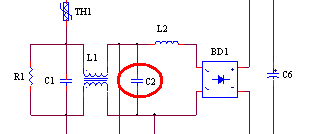

After design initialized, you can click on the component to go into the component selection user interface.




4.8            Component Selection User Interface – searched components box

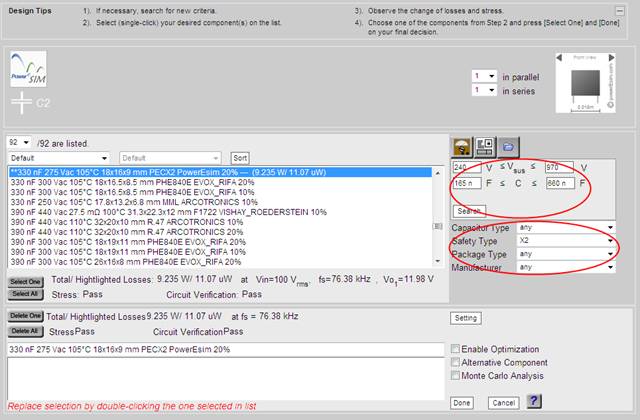

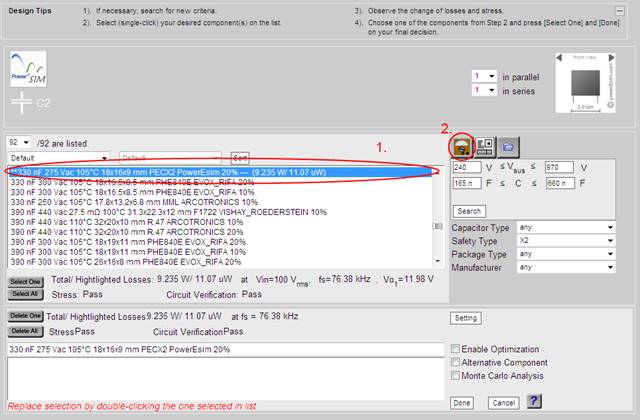

  1. Fill in the range of the searching criteria, and press “Search,” all the component fulfill the criteria will be displayed at the searched components box and ready to be chosen.
  2. “Total Losses” will be shown for the converter using the highlighted component.
  3. “Highlighted Losses” will be shown for the highlighted component.






4.9            Change a component from database

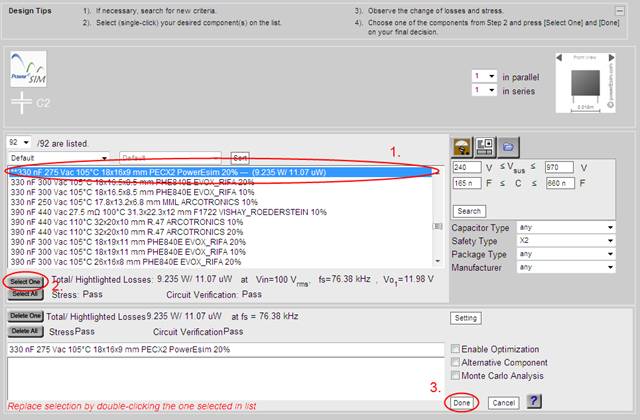

  1. Select any one component from the searched components box
  2. Click “Select One
  3. “Total Losses” will be shown for the converter using the selected component.
  1. “Selected Losses” will be shown for the selected component.
  2. Press “Done” after selection






4.10       Preview Component shape

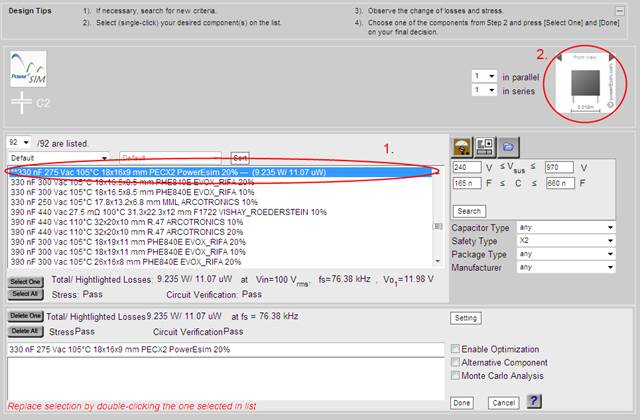

  1. Highlight any one component from the list
  2. The component’s shape is shown at upper right corner






4.11       Analysis Particular Component

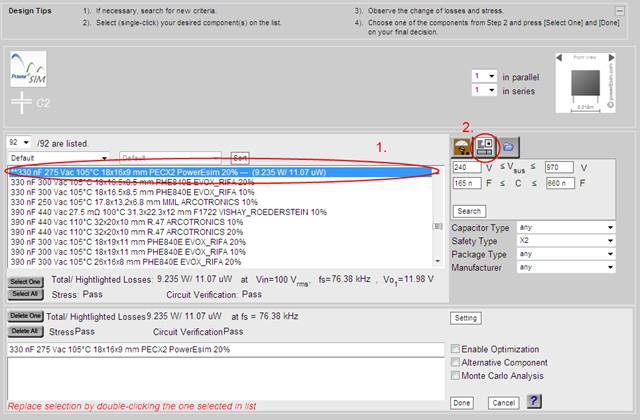

  1. Highlight any one component from the list
  2. Press “Component Analysis
  3. A component analysis page will be displayed.
  4. If highlighted component is changed, press “Component Analysis” again to refresh.

4.12       View Component Characteristics



  1. Highlight any one component from the list
  2. Press “Component Characteristic
  3. A component characteristic page will be displayed.
  4. If highlighted component is changed, press “Component Characteristic” again to refresh.






4.13       Select PWM Controller Block

Double click the block in order to view the current PWM block



4.14       Change PWM Controller Circuit

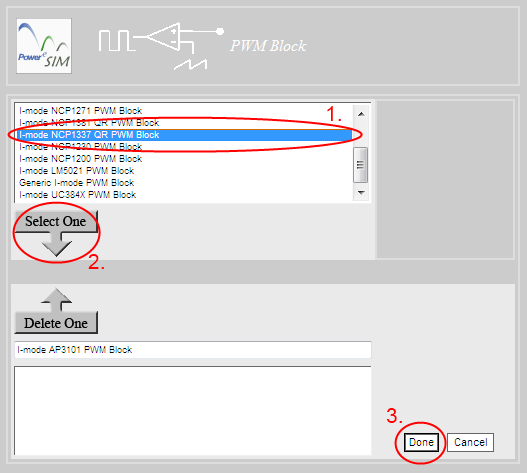

  1. Highlight any one circuit from the list
  2. Press “Select One
  3. Press “Done” after selection



4.15       Select Feedback Block

Double click the block in order to view the current Feedback block



4.16       Change Feedback Circuit

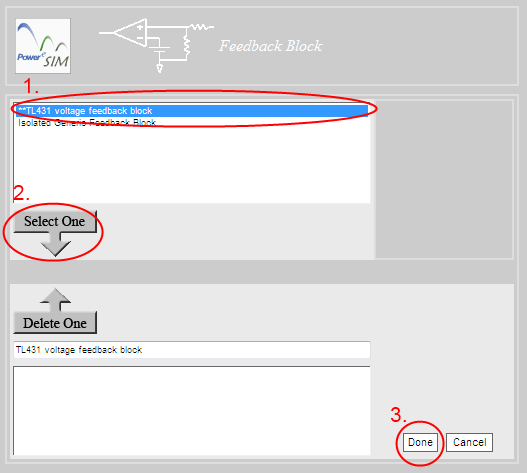

  1. Highlight any one circuit from the list
  2. Press “Select One
  3. Press “Done” after selection

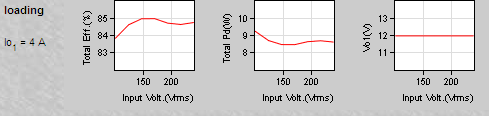

4.17       View charts on the front page.

Click charts under schematic view



4.18       Print Schematic Diagram

To print the circuit diagram, there are several steps.

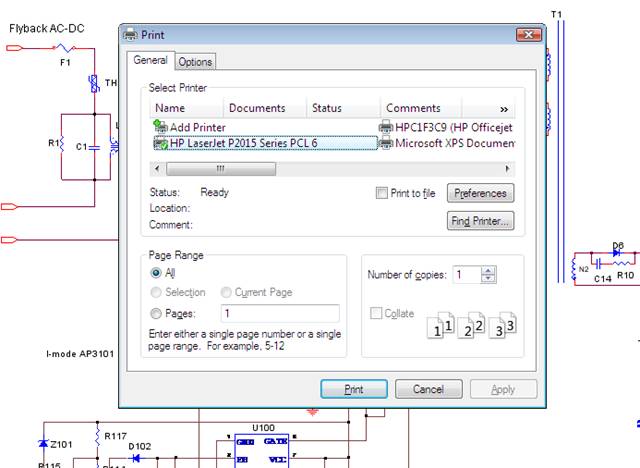

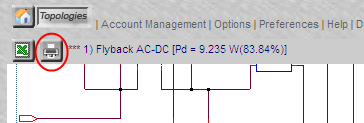

  1. Click Printer button

  1. Print Pop-up window appears automatically
  2. Click Print
