PowerEsim Manual - Smart Optimizer |
| PowerEsim is a free web-based software providing power supply (SMPS) design, transformer design, magnetic design, loss analysis, thermal analysis, waveform analysis, MTBF analysis, BOM building, DVT analysis and optimization of power supply (SMPS). | |
| Click to try PowerEsim (www.powerEsim.com) | |
Smart optimizer navigates or iterates combinations of circuit definition (by varying pre-defined parts) and returns a number of circuit combinations in sorted order according to converter efficiency.

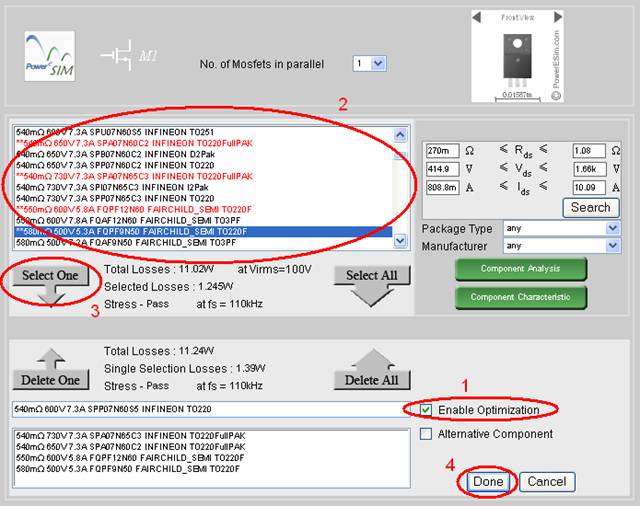

Select the part (section 5.7) you want to do optimization and see the picture as above.
After selecting parts for preparing optimization, press button
at the bottom left of the main page to fire off smart optimizer.

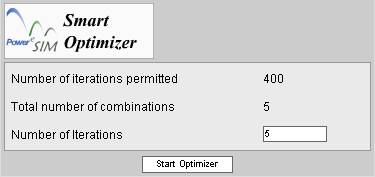

The number of iterations instructs smart optimizer which algorithm it should adopt for your request. Roughly speaking, more iteration provides better results and requires more processing time.
Optimization completes your request in time ranges from several seconds up to half an hour or more. It depends on total number of combinations of design definition and number of iterations specified.

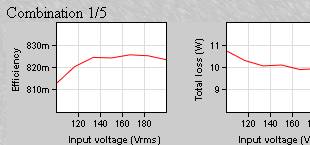

After its completion, you will be notified by combination navigation bar
on bottom-left panel or at the top of every analysis window similar to
. You can press
and
to navigate among possible combinations. Alternatively, you can press “Go to” button to view the specific combination result
