PowerEsim Manual - Waveform Analysis
PowerEsim is a free web-based software providing power supply (SMPS) design, transformer design, magnetic design, loss analysis, thermal analysis, waveform analysis, MTBF analysis, BOM building, DVT analysis and optimization of power supply (SMPS).
Click to try PowerEsim (www.powerEsim.com)

What is waveform analysis? TopClick here to try Online Waveform analysis now

Waveform analysis typically plots voltage and current of important components at a specific operating condition.

How can I bring up the waveform analysis window? TopClick here to try Online Waveform analysis now

Just press on the left panel on the main page.

What are shown on these plots? TopClick here to try Online Waveform analysis now

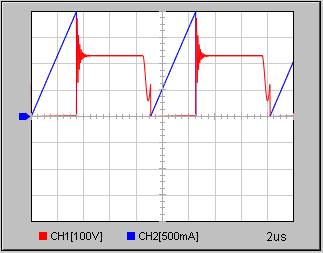

Here is a typical plot of a Flyback converter circuit with component M1. You have dual traces channel 1 (CH1) and channel 2 (CH2). Vertical resolutions are quoted inside the square brackets while the horizontal resolution resides on the bottom right.

Hey, what are these curves for? TopClick here to try Online Waveform analysis now

A description box is placed on the right hand side of each waveform plot. It informs us which waveform is shown by each trace.

Can I change the operating condition? TopClick here to try Online Waveform analysis now

Similar to other PowerEsim windows, you can change the input voltage as well as loading current to obtain an estimate of characteristics curves of certain components. All plots will be updated immediately after pressing on the top panel.
